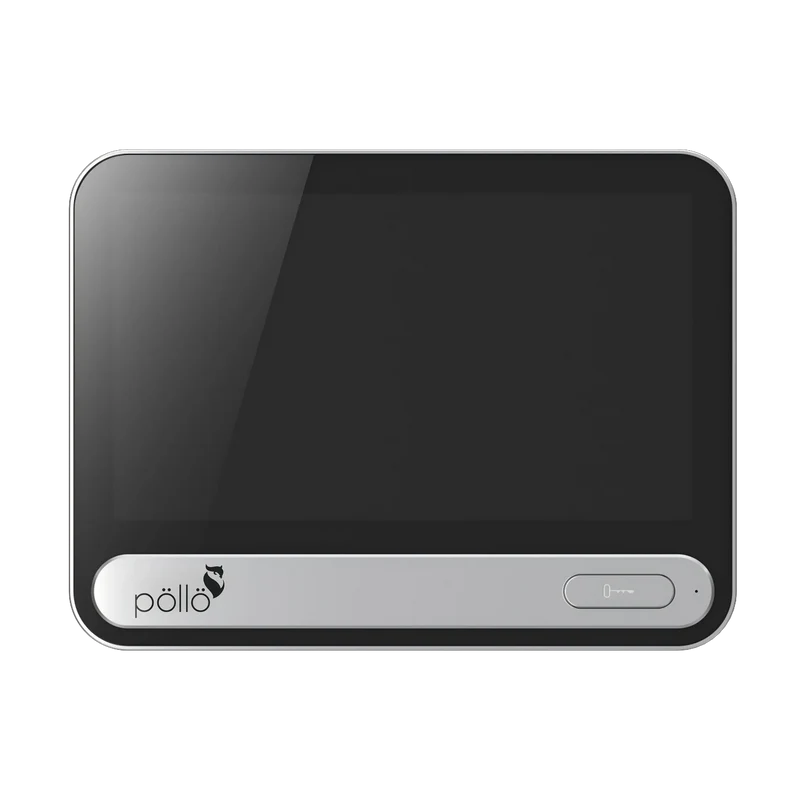

TouchHub – Indoor Home Security Command Terminal

PLC-VD3200/PM

TouchHub – Indoor Home Security Command Terminal

₨ 30,700

7-Inch IP Video Intercom Indoor Monitor | Linux Touch Screen with PoE & WiFi

PLC-VD3200/PM

• 7” IPS touch screen with smooth capacitive operation
• Linux OS for stable and secure performance
• Up to 4-channel live video display
• Supports IP cameras up to 6MP resolution
• Advanced video compression: H.265+ / H.265 / H.264
• Built-in microphone & speaker with noise suppression
• Supports 16 IP cameras and 5 indoor extensions
• Wi-Fi (2.4GHz) and 100Mbps Ethernet connectivity
• Micro-SD storage up to 256GB
• 8-channel alarm input support
• DC 12V / PoE power with low consumption (<6W)
• Wall-mount design, compact and lightweight
• Certified CE / FCC, RoHS compliant

SKU: PLC-VD3200/PM Categories: , Tags: , , , , , , ,

Description

GENERAL SPECIFICATION
Model PLC-VD3200/PM
Operating System Linux
Display Screen 7-inch IPS Touch Screen
Display Resolution 1024 × 600, Brightness: 300 cd/m²
Operation Method Capacitive Touch Screen
Video Input Max. 4CH videos can be viewed simultaneously
Network Input Resolution 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / 960H / D1 / CIF
INPUT
Compression H.265+ / H.265 / H.264 / MJPEG
Local Input Built-in Microphone
OUTPUT
Local Output Built-in Speaker
Compression G.711(U/A)
Resolution Up to 2MP
Frame Rate NTSC: 30fps; PAL: 25fps
GENERAL SPECIFICATION
Simultaneous Playback Max. 1CH
Linked IPC Max. 16CH
Linked Indoor Extensions Max. 5
Interface RJ45 100Mbps Self-adaptive Ethernet Port × 1
Wireless Network WiFi 802.11b/g/n
Protocol TCP/IP, DHCP, DNS, NTP, etc.
Incoming/Outgoing Bandwidth 40/40Mbps
Audio Built-in Speaker and Microphone, Supports Noise Suppression and Echo Cancellation
Storage Built-in Micro-SD Card Slot, Up to 256GB
Reset Yes
Alarm Input 8CH
Wi-Fi Yes, 2.4G Wi-Fi
Unlocking Button Yes
RS485 Reserved
Power Output DC12V 200mA (Only Available When DC12V Power Supply is Used)
Power DC12V/PoE
Power Consumption < 6W
Dimensions 180.6 × 135.6 × 26.8 mm
Weight (Net) Approx. 0.36kg
Installation Wall Mounting
Working Environment -20℃ ~ 50℃, Humidity: Less Than 95% (Non-condensing)
Certificate CE, FCC
Environmental Protection Complies with Directive EU RoHS, REACH and WEEE
