| Camera Specification |
| Model |

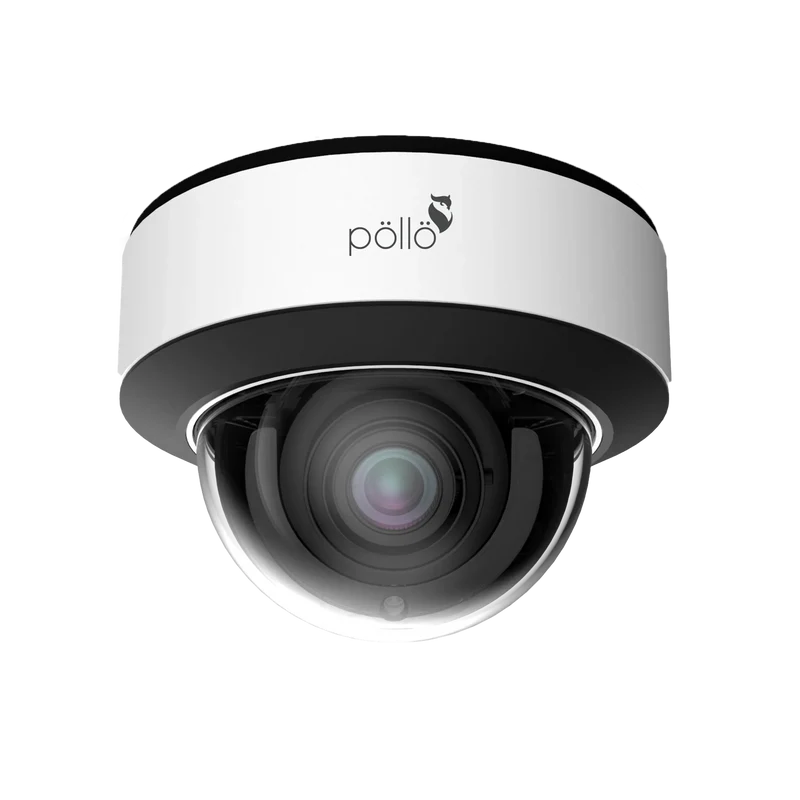

PLC-435M-AUK-IR3/PM |
| Image Sensor |
1/2.7″ CMOS |
| Resolution |
5MP (2592 × 1944) |
| Electronic Shutter |
1/3s ~ 1/100000s |
| Lens |
2.8mm Fixed Lens (F1.6, M12 Mount) |
| Minimum Illumination |
0.02 Lux @F1.6 (AGC ON), 0 Lux with IR |
| Day & Night |
ICR |
| Wide Dynamic Range |
120dB True WDR |
| BLC / HLC / Defog |
Yes |
| Digital Noise Reduction |
3D DNR |
| Angle Adjustment |
Pan: 0°~355°; Tilt: 0°~67°; Rotation: 0°~355° |
| Video |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| Frame Rate |
5MP/4MP/2K/3MP/1080P @30fps, HFR Mode: 1080P/720P @60fps |
| Bit Rate |
64Kbps ~ 8Mbps (VBR / CBR) |
| Audio |
1CH Audio Input + Built-in Microphone (G711A/U) |
| AI Features |
| Perimeter Protection |
Line Crossing, Region Entrance, Exit & Intrusion Detection with Human/Vehicle Classification |
| Face Detection |
Face Detection & Face Capture |
| Statistics |
People Counting & Heat Map |
| Other AI Events |
Abandoned Object, Missing Object, Crowd Density Detection |
| Network & Storage |
| Network Interface |
RJ45 |
| Storage |
MicroSD Card Slot (Up to 256GB) |
| Alarm I/O |
1 Alarm Input / 1 Alarm Output |
| Remote Monitoring |
Web Browser, PVMS Plus, NVR, Mobile App |
| Online Users |
Up to 10 Simultaneous Users |
| Physical & Environmental |
| Installation |
Ceiling Mount / Wall Mount |
| Weight |
Approx. 0.65kg |
| Certifications |
CE, FCC, RoHS, WEEE, REACH |
