| Camera Specification |
| Model |

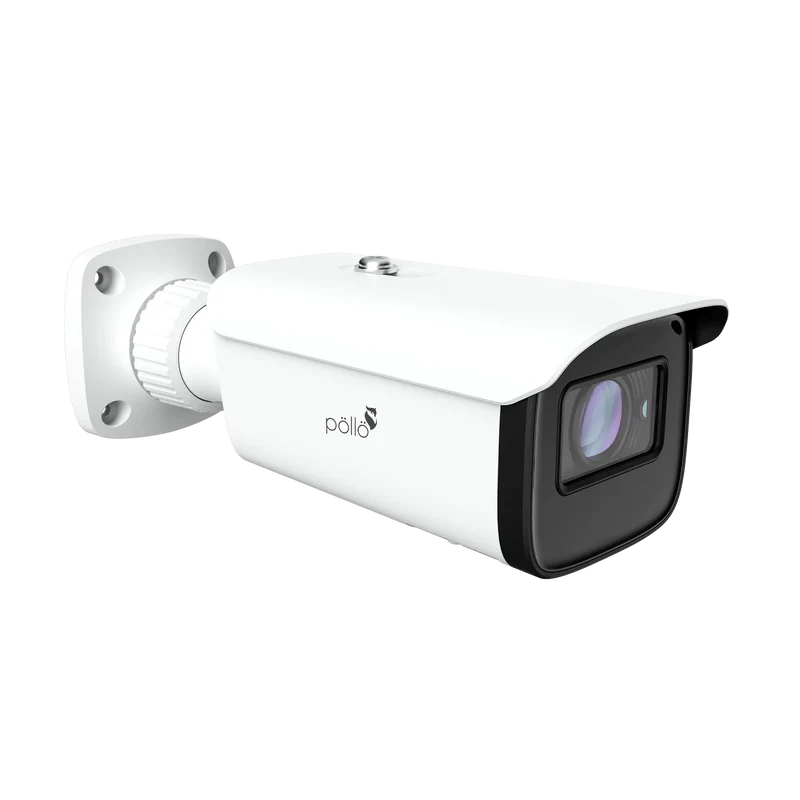

PLC-425M-MZ-IR5/PM |
| Image Sensor |
1/2.7″ CMOS |
| Resolution |
5MP (2592 × 1944) |
| Electronic Shutter |
1/30s ~ 1/100000s |
| Lens |
2.8–12mm Motorized Lens (F1.4) |
| Field of View |
Horizontal: 92.7°~29.8°, Vertical: 76.4°~22.6°, Diagonal: 105.4°~36.8° |
| Minimum Illumination |
0.008 Lux @F1.4 (AGC ON), 0 Lux with IR |
| Day & Night |
ICR |
| Wide Dynamic Range |
120dB True WDR |
| BLC / HLC / Defog |
Yes |
| Digital Noise Reduction |
3D DNR |
| IR Distance |
30–50m |
| Video |
| Video Compression |
Smart H.265, H.265+, H.265, Smart H.264, H.264+, H.264, MJPEG |
| Frame Rate |
Up to 30fps at 5MP, HFR Mode: 1080P/720P up to 60fps |
| Bit Rate |
64Kbps ~ 8Mbps (VBR / CBR) |
| Audio |
1CH Audio Input (G711A/U) |
| AI Features |
| Perimeter Detection |
Line Crossing, Region Intrusion, Entrance & Exit Detection with Human/Vehicle Classification |
| Video Abnormality |
Scene Change, Video Blur & Colour Cast Detection |
| Smart Alarm |
Motion Detection, SD Card Error/Full, IP Conflict, Cable Disconnection |
| Sound & Light Warning |
Supported |
| Network & Storage |
| Network Interface |
RJ45 Ethernet |
| Storage |
MicroSD Card Slot (Up to 128GB) & Network Storage |
| Remote Monitoring |
Web Browser & CMS Software |
| Supported Users |
Up to 10 Simultaneous Users |
| ONVIF |
Supported |
| Physical & Environmental |
| Power Supply |
DC12V / PoE (IEEE802.3af) |
| Power Consumption |
<11W |
| Protection Rating |
IP67 |
| Installation |
Ceiling Mount / Wall Mount |
| Dimensions |
217.7 × 80.5 × 80.5 mm |
| Weight |
Approx. 0.65kg |
| Certifications |
CE, FCC, RoHS, WEEE, REACH |
