| Camera Specification |
| Model |

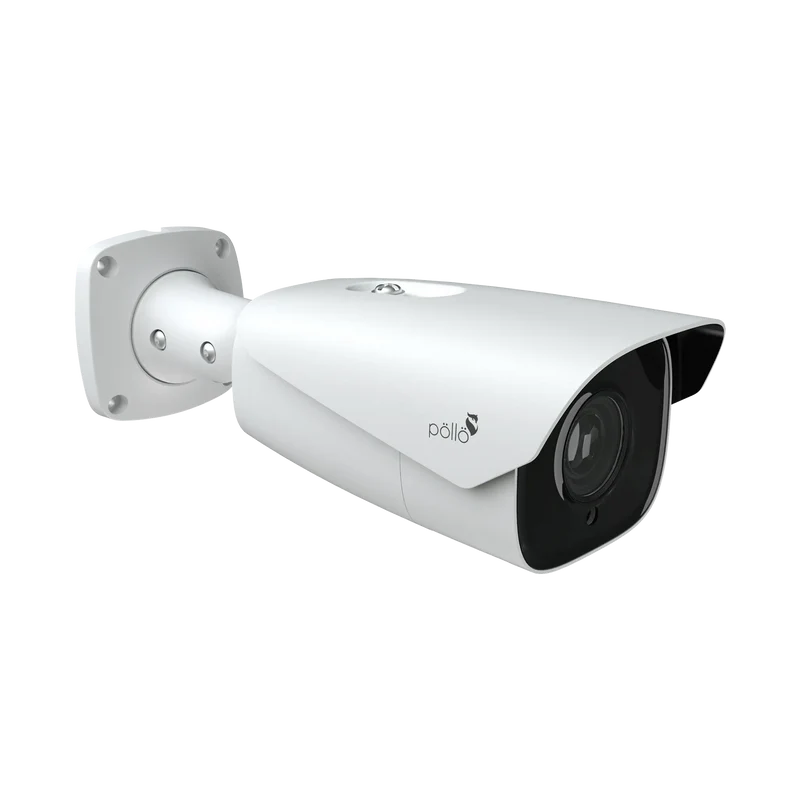

PLC-422M-LPR-IR10/PM |
| Image Sensor |
1/2.8″ CMOS |
| Resolution |
2MP Full HD (1920 × 1080) |
| Electronic Shutter |
1/3s ~ 1/10000s |
| Lens |
7~22mm Motorized Lens (F1.6) |
| Focus |
Motorized Focus |
| Minimum Illumination |
0.0026 Lux @F1.2 (AGC ON), 0 Lux with IR |
| Wide Dynamic Range |
120dB True WDR |
| BLC / HLC / Defog |
Yes |
| Digital Noise Reduction |
3D DNR |
| Angle Adjustment |
Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360° |
| Video |
| Video Compression |
Smart H.265, H.265+, H.265, Smart H.264, H.264+, H.264, MJPEG |
| Frame Rate |
1080P @30fps, HFR Mode: 1080P/720P @60fps |
| Bit Rate |
64Kbps ~ 6Mbps (VBR / CBR) |
| Audio |
1CH Audio Input + 1CH Audio Output (G711A/U) |
| LPR & AI Features |
| License Plate Recognition |
Built-in ANPR/LPR with Plate Recognition |
| Vehicle Database |
Up to 10,000 License Plates |
| Capture Speed |
0–70 km/h |
| Snapshot |
Overview & Plate Close-up Images |
| Intelligent Analytics |
License Plate Recognition, Scene Change, Video Blur & Color Cast Detection |
| Network & Storage |
| Network Interface |
RJ45 Ethernet |
| Storage |
MicroSD Card Slot (Up to 256GB) + Network Storage |
| Remote Monitoring |
Web Browser, CMS Software, Mobile App |
| Online Users |
Up to 4 Simultaneous Users |
| Physical & Environmental |
| Night Vision |
IR Range: 70–100m |
| Power |
DC12V / PoE (IEEE802.3af) |
| Weather Protection |
IP67 Weatherproof |
| Installation |
Ceiling Mount / Wall Mount |
| Weight |
Approx. 1.04kg |
| Certifications |
CE, FCC, RoHS, WEEE, REACH |
