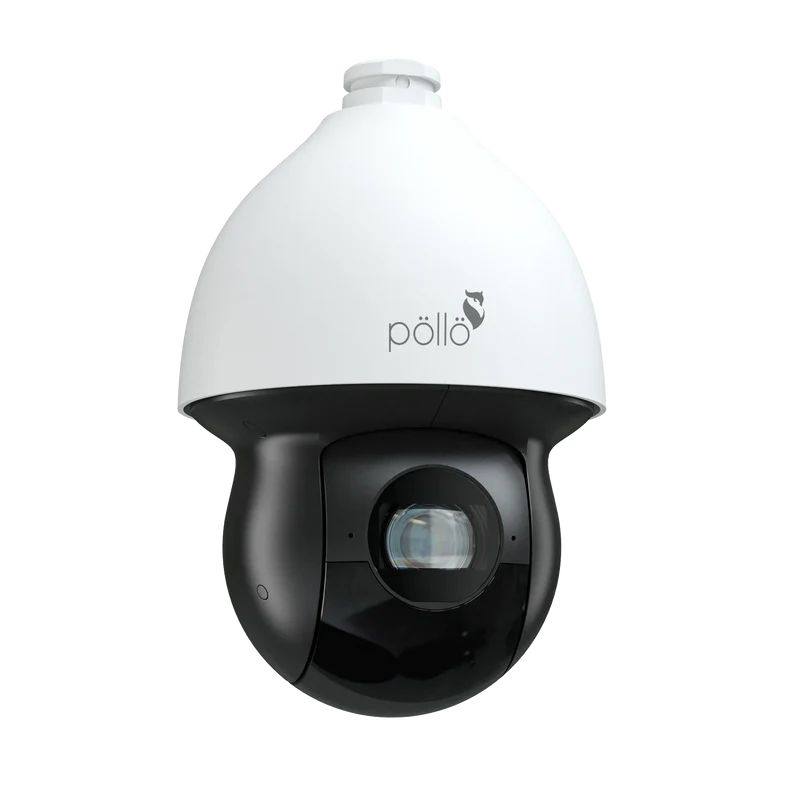

| Model |
PLC-9445-AI-IR50/PM |
| Image Sensor |
1/2.7″ Progressive Scan CMOS (BSI & NIR++) |
| Max Resolution |
2560 × 1440 (4MP) |
| Minimum Illumination |
Color: 0.005 Lux @ F1.2 (AGC ON); B/W: 0.001 Lux @ F1.2 (AGC ON); 0 Lux with IR |
| Lens |
3.8–190mm Motorized Lens, 45× Optical Zoom |
| Field of View |
Horizontal: 59.1°–1.8°; Vertical: 38.4°–1.1°; Diagonal: 69°–2.1° |
| Aperture |
F1.2–F3.5 |
| IR Distance |
Up to 500m |
| IR Type |
8 × 4W 855nm IR LEDs (4 Groups) |
| PTZ |
360° Endless Pan, -25° to 155° Tilt, 45× Optical Zoom, 16× Digital Zoom |
| Preset Positions |
360 Presets |
| Cruise |
8 Cruises (Up to 32 Presets per Cruise) |
| Trace |
4 Traces (Up to 10 Minutes Each) |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| Video Bit Rate |
64 Kbps – 16 Mbps |
| Audio Compression |
G.711 A/U |
| Main Stream |
2560×1440 / 1920×1080 / 1280×960 / 1280×720 @ 25/30fps |
| Sub Stream |
704×576 / 640×480 / 352×288 @ 25fps; 704×480 / 640×480 / 352×240 @ 30fps |
| Third Stream |
Supports up to 1920×1080 @ 25/30fps |
| Smart Features |
Vehicle Detection, Smart Tracking, Tripwire, Region Intrusion, Region Entry/Exit Detection |
| Road Traffic |
Vehicle Detection & Tracking |
| Alarm Interface |
1 Alarm Input, 1 Alarm Output |
| Audio Interface |
1 Audio Input, 1 Audio Output |
| Storage |
Micro SD Card Slot (Up to 256GB) |
| Network Interface |
RJ45 10/100M Ethernet, PoE+ |
| Protocols |
HTTP, HTTPS, IPv4/IPv6, RTSP, RTP, RTCP, FTP, SMTP, SNMP, DDNS, DHCP, PPPoE, QoS, ONVIF G/S/T |
| Security |
HTTPS Encryption, IEEE802.1X, IP Filtering, User Authentication |
| Power Supply |
AC24V / DC24V / PoE+ (802.3at) |
| Power Consumption |
Average 12W, Maximum 24W (Including IR) |
| Working Temperature |
-40°C to +65°C (IR Off); -40°C to +45°C (IR On) |
| Protection |
IP67, IK10, 6000V Lightning Protection |
| Dimensions |
Φ197 × 302 mm |
| Weight |
Approx. 2.9 kg |
| Certifications |
CE, FCC, KC, BIS, UKCA, RoHS |
