Description

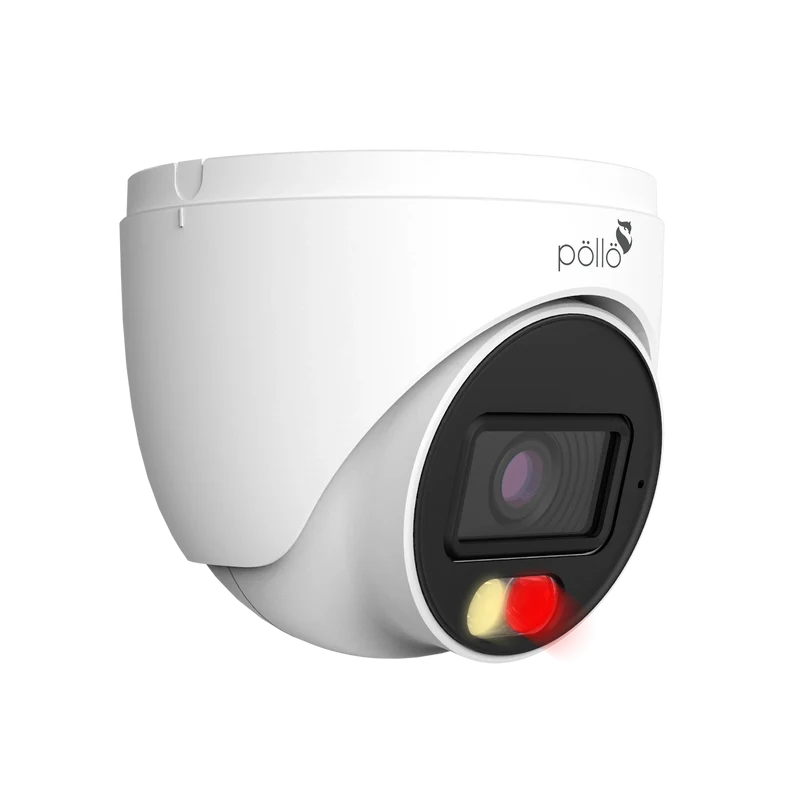

| Model | PLC-335P-AU-DL3/PM |
| Image Sensor | 1 / 2.5″ CMOS |
| Resolution | 5MP |
| Image Size | 2944 × 1656 |
| Video Output | AHD / TVI / CVI / CVBS |
| Audio | 1CH Built-in Microphone |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto |
| View Distance | IR Range: 20 ~ 30 m White Light Range: Up to 30 m |
| Frame Rate | TVI: 2944 × 1656 @ 20fps, 2560 × 1440 @ 25/30fps AHD: 2944 × 1656 @ 20fps, 2560 × 1440 @ 25/30fps CVI: 2560 × 1440 @ 25/30fps CVBS: PAL / NTSC |
| Minimum Illumination | 0.005 Lux F1.2 (AGC ON); 0 Lux (LED ON) |
| Lens | 2.8 mm |
| Lens Mount | M12 |
| S / N Ratio | ≥52dB (AGC OFF) |
| Ingress Protection | IP67 |
| Function Control | OSD (COC Control) |
| Digital WDR | Yes |
| Digital Noise Reduction | Yes, 2D DNR (3D DNR supported with TVT DVRs) |
| AGC | Yes |
| Auto White Balance | Yes |
| Backlight Compensation (BLC) | Yes |
| Contrast | Yes |
| Saturation / Color Gain | Yes |
| Sharpness | Yes |
| Coaxial Audio | Yes |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | Chinese and English |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360° |
| Power Supply | DC12V (±10%) |
| Power Consumption | LED OFF: <1W; LED ON: <4W |
| Working Environment | -10°C ~ 40°C, 10% ~ 90% (Relative Humidity) |
| Dimensions | 162.1 × 74.8 × 73.8 mm |
| Weight (Net) | Approx. 0.25 kg |
